Potentiostat
PTC-0520E
PTC-0520E

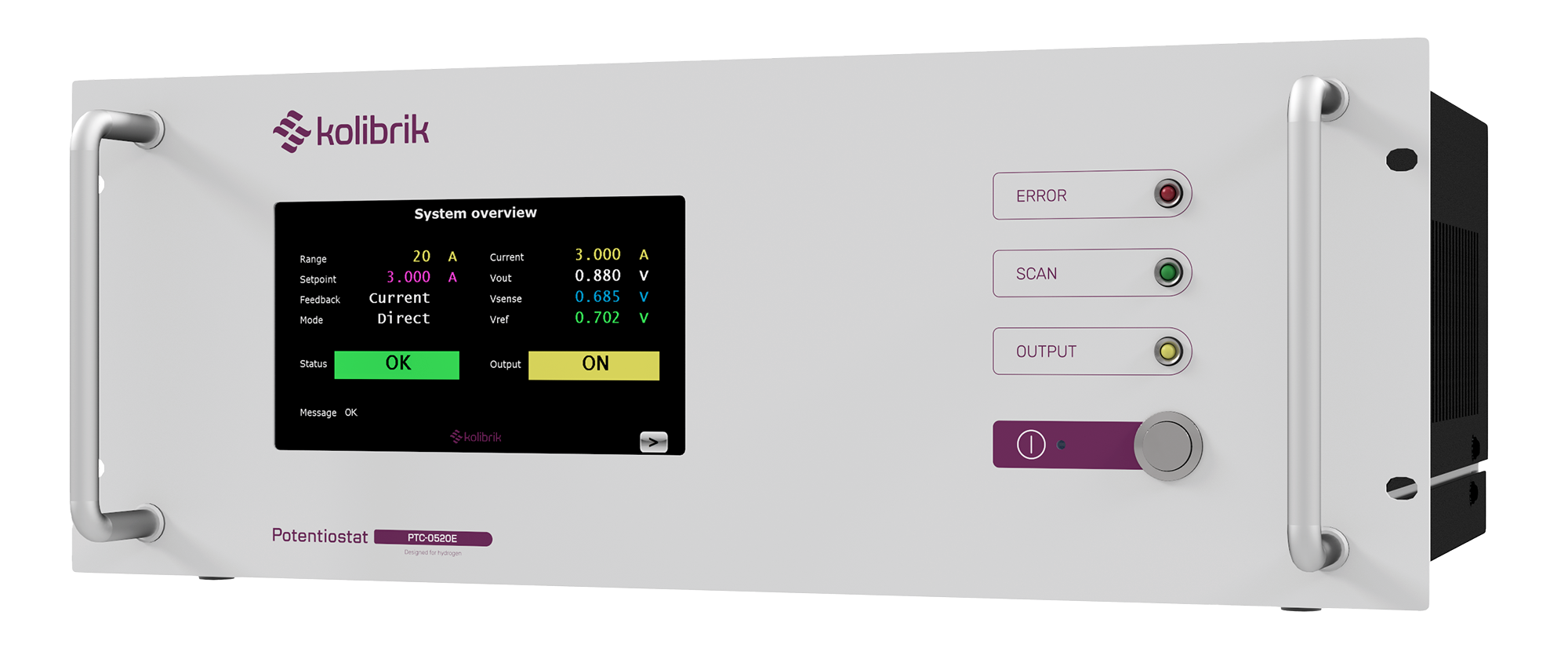

PTC-0520E is an air-cooled potentiostat from the Kolibrik Potentiostat Product Family. It is ideal for a wide range of electrochemical applications, including Electrochemical Impedance Spectroscopy (EIS). Our Potentiostat/Galvanostat delivers high-accuracy and high-precision measurements in both potentiostatic and galvanostatic modes.
Key Features
- Potentiostat / Galvanostat up to ±20 A (4-quadrant)
- Current ranges up to ±20 A (4 ranges)
- Impedance spectroscopy 1 mHz ... 100 kHz
- Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
- Software with external control via TCP/IP, LabView drivers on request
Technical Parameters
| Power supply | 110 … 240 V AC / 50 … 60 Hz |
| Dimensions | 19“ rack cabinet, 4U height |
| Cooling | Air |
| Protection rating | IP20 |
| Electrometer Input voltage range | 10 V … +10 V |
| Compliance / Output voltage | -5 V … +5 V |
| Compliance / Output current | -20 A … +20 A |
| Max. internal power dissipation | 200 W |
| Current ranges | 20 mA, 200 mA, 2 A, 20 A |
| Sampling | 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling
14-bit ADCs, up to 20 Msps for EIS measurements |
| Measurement resolution | 0.001% of selected range for ≤ 1 ksps sampling |
| Accuracy | Voltage: ≤ 0.1% of range + 0.1% of reading
Current: ≤ 0.1% of range + 0.5% of reading |
| Acquitions methods | Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Python scripting |
| EIS frequency | 1 mHz ... 100 kHz, limited use up to 1 MHz |
| EIS amplitude (for < 1 kHz) | 1 … 1000 mV up to 10 A |
| PC connection | USB 2.0 |

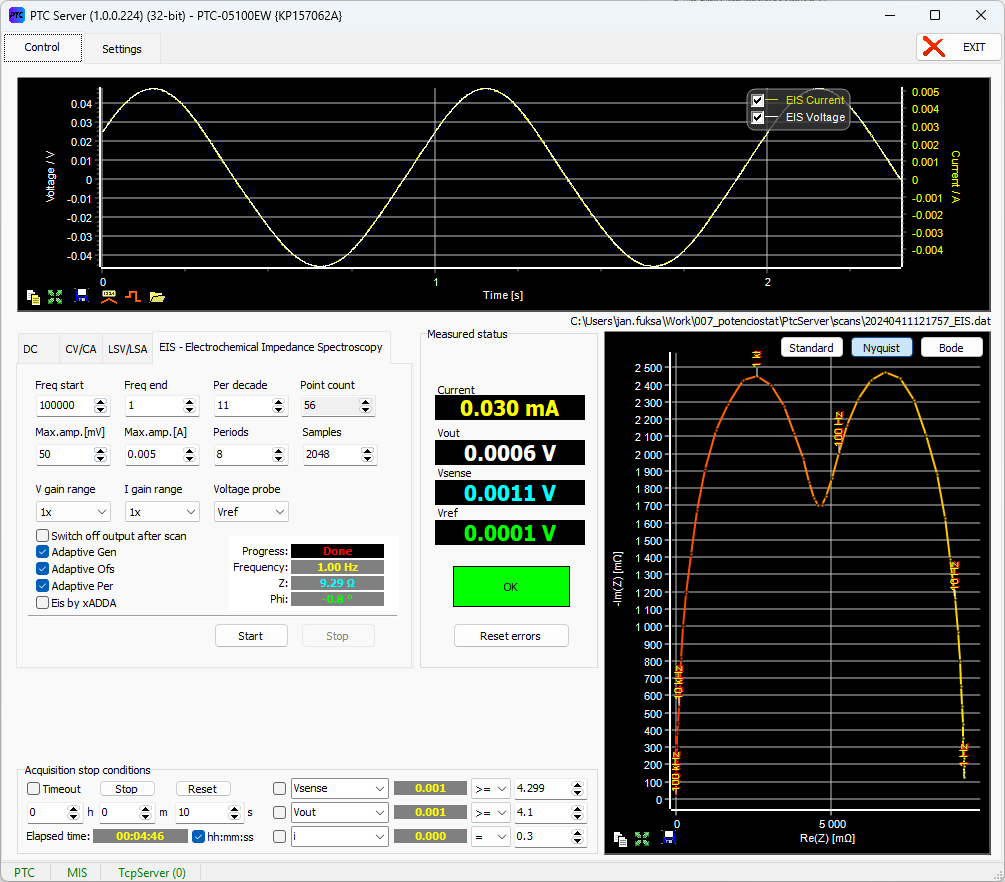

| Software | Software for MS Windows, TCP Server, NI LabVIEW drivers, Python tools |
If these variants do not suit you, please contact us, we offer customized solutions!
Documentation
Gallery

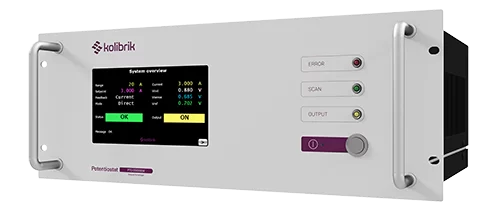

All Potentiostat Models
PTC-0520E
Current
±20 A
Voltage
±5 V
EIS
1 mHz − 100 kHz
This Product
