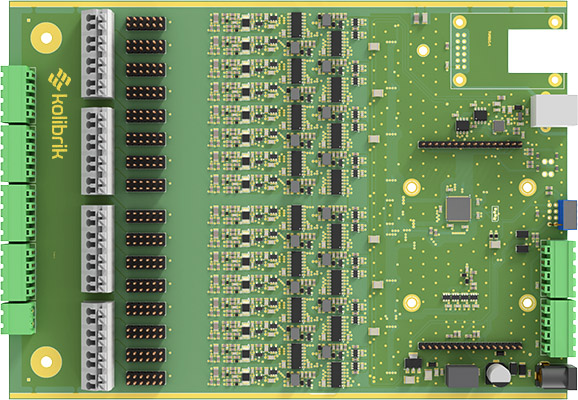

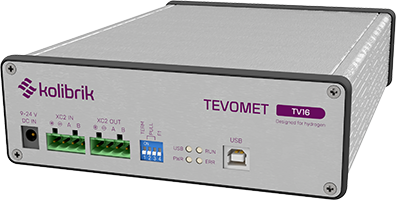

TEVOMET

• 16 independent channels for temperature sensors and voltage measuring
• Multiple order of magnitude input voltage range
• Most common temperature sensors:
  • Thermocouples, built in precise cold junction compensation
  • RTD sensors (Pt100, Pt1000)
  • NTC thermistors up to 10 kΩ
• Each channel is galvanically isolated
• Adjacent channels can be connected internally to common potential
• Multiple TEVOMETs can be chained through internal bus up to total 160 channels
• Multiple communication options with - Ethernet, USB, RS-485
• Simple open protocol
• PC monitoring software
• LabView drivers
• On-demand modification options: eg. additional communication protocols, built-in display, custom algorithms
• Accessories:
  • Piggyback for voltage range 5 V
  • Piggyback for voltage range 10 V
  • Piggyback submodules for current ranges 4 - 20 mA

if these parameters do not meet your requirements, please contact us, we offer customized solutions!

• TEVOMET TV16 datasheet
